Doorlock Tracker 4G

Regular price €598,00
Unit price per
TYPE
Added to Cart! View cart or continue shopping.
Standby Time
(2 hours active tracking per day):
10 Min Reporting 100%
Months 0%
5 Min Reporting 100%
Months 0%
1 Min Reporting 100%
Months 0%
Network/Operating Band

LTE FDD Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/

B20/B25/B26/B27/B28/B66/B85

LTE FDD Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/

B20/B25/B28/B66/B71/B85

GSM/EDGE:850/900/1800/1900 MHz

Battery Life

14400mAh/3.6V

GNSS Specifications

GNSS Chipset：MediaTek High Gain GNSS receiver

Parallel GNSS：GPS+Glonass or GPS+Beidou

Horizontal Position Accuracy (CEP)：Autonomous < 2.5m

Interfaces

Charging Port：2 Pin 5V/DC

Network, GNSS Antenna：Internal only

Indicator LED：Network, GNSS, RFID and Battery

FOTA：Yes

Physical Power Switch：1

Temperature Sensor：1 temperature sensor

SIM Card：Nano SIM

USB Type-C Connection：Data Communication and Charging

BLE 5.0：Yes

General Specifications

Waterproof：IP67

Dimensions：207.5mm*110.2mm*48.1 mm (8.17” *4.39” *1.9”) without rope

Weight：1060g (37.4 oz)

Battery：Rechargeable Li 14400 mAh/ 3.6V

Charging：Customized USB cable (Recommended using 5V 1A adaptor, 30 hours charging)

Solar Panel：For charging the tracker battery

Operating Temperature：-25℃ ~ +80℃ (-13°F ~ 176°F)

Mounting：Built-in Magnet

Rope：350mm (standard)

Air Interface Protocol

Transmit Protocol：TCP, UDP, MQTT, SMS

Data Security & Encryption Option：MD5/AES256

BLE Accessory Support：Yes

Scheduled Timing/angle/distance/Report：Report position and status at preset intervals

Geo-fence：Support up to 64 internal geo-fence regions

Alarms：Rope cut, moving, stop, lock, unlock

DOORLOCK TRACKER INFO DOC (PDF)

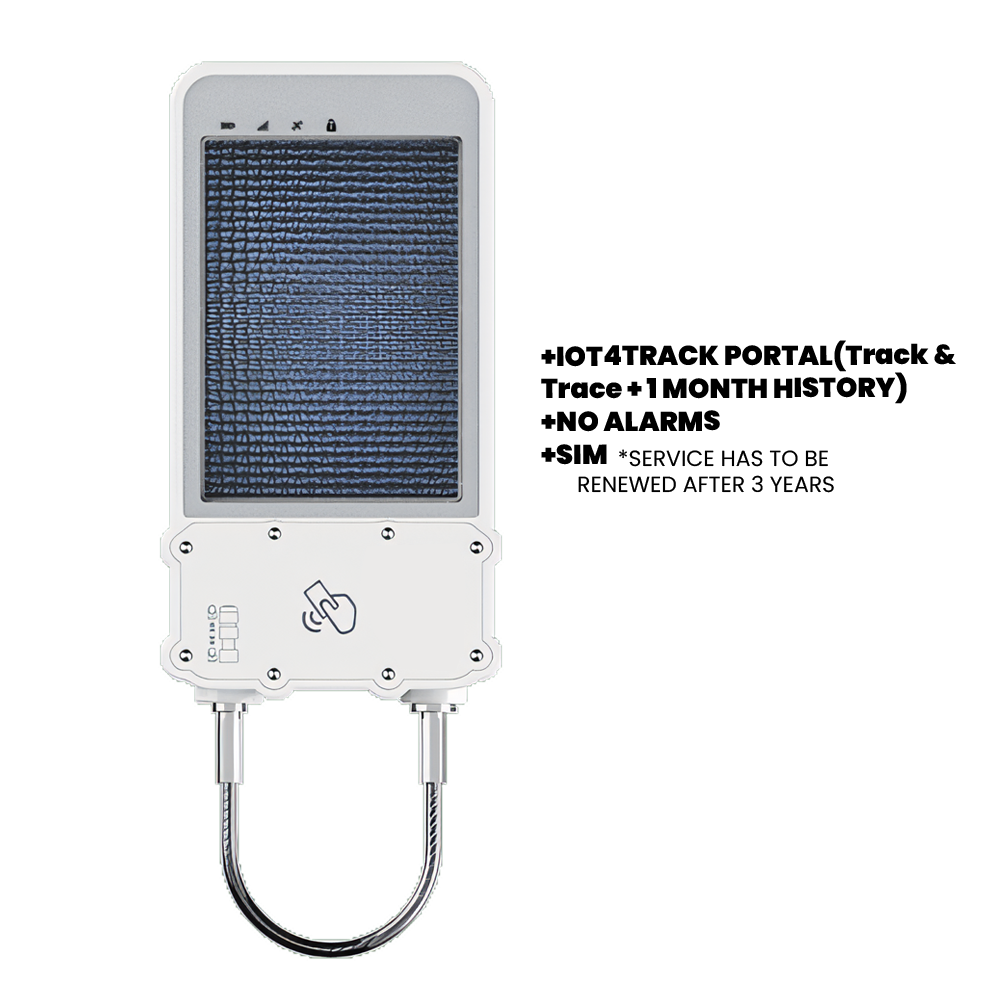

This Solar GPS Padlock is designed and developed for outdoor asset tracking telematic structures. It has a long-life battery, solar-powered with high charging efficiency, and is suitable for tracking and safeguarding assets such as containers, trailers, trucks, etc. The solar-powered E-lock for cargo reports alarms to the server for events of rope cutting, locking, and unlocking. Furthermore, our padlock can be opened both remotely and in the near field by either RFID and BLE or with commands via network and SMS.

ALL FEATURES

REAL TIME AND BUFFER LOCATIONS

REAL TIME AND BUFFER LOCATIONS

Real time location updates can be as frequent as 3s. Up to 60,000 location points can be saved in buffer if out of network coverage.

Solar powered

Solar powered

It obtains power through solar panel to extend battery life.

MOTION DETECTION

MOTION DETECTION

Alerts for asset moving and parking.

Rugged construction

Rugged construction

Thick and solid casing and rugged construction for outdoor uses.

SUPER LONG LIFE BATTERY

SUPER LONG LIFE BATTERY

Rechargeable Li-Polymer 14400 mAh/3.6V battery, battery last for months without solar powered charging

Multiple control mode

Multiple control mode

Unlock by RFID, BLE, OTA, SMS commands.

Security alarm

Security alarm

For locking, unlocking, rope cutting.

Built-in Geofence

Built-in Geofence

For locking, unlocking and rope cutting.

Built-in strong magnet

Built-in strong magnet

Built-in magnet for easy installation on assets.

IP67 WATERPROOF

IP67 WATERPROOF

Can withstand water hoses, jet sprays, and momentary water immersion.

FOTA

FOTA

Firmware Upgrade Over-the-air.

COMPATIBLE WITH MOST PLATFORMS

COMPATIBLE WITH MOST PLATFORMS

Our tracker are compatible with most platforms used in the europen union
